Application Fields
Agriculture & Forestry: Pest and disease monitoring, drought assessment, plant identification, grassland growth status monitoring
Ecological Environment: Water body monitoring, atmospheric environment monitoring, soil nutrient determination
Urban Applications: Urban planning, road damage inspection, environmental law enforcement, landscape plant monitoring
Archaeology & Cultural Relics: Heritage site identification, material authentication, pigment differentiation
Geological Exploration: Oil exploration, mineral exploration, mineral mapping
Military Applications: Target verification, anti-camouflage identification
Functional Features
Large-target CMOS hyperspectral camera, supporting up to 1920 spatial channels and 1200 spectral channels
High-precision built-in scanning module with automatic speed matching, ensuring clear imaging without external movement
Built-in TOF camera for synchronous measurement of target 3D information
Integrated high-performance computing unit and high-definition touchscreen, enabling operation without an external computer for enhanced convenience
Real-time monitoring of hyperspectral images and spectral curves
Data format compatible with third-party software such as ENVI and Evince
Dedicated portable tripod for quick setup and easy portability
Specifications

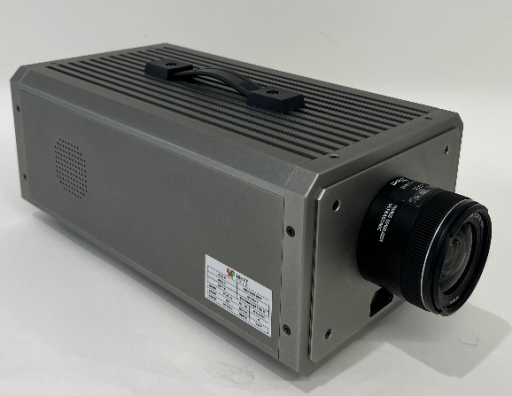

TECHNICAL SPECIFICATIONS | HY-6010-U | |
System Function | Imaging Mode | Built-in Push-Broom Imaging |
Hyperspectral Camera | Spectral range | 400-1000nm |
Spectral resolution | ≤ 2.8nm | |
Sampling Interval | 0.5nm | |
F-number | F/2.6 | |
Sensor | CMOS | |
Data interface | GigE / USB3.0 | |
Power supply | External Power Supply (12-24 VDC)，3W | |
Sensor Optical Format | 1/1.2” , 11.3mm x 7.1mm | |
Sensor resolution | 1920 x 1200 | |
Pixelsize | 5.86 μm x 5.86 μm | |
Bit depth | 12bits | |
Slit width | 25μm | |
Recommended binning | 4x4 | |
Spatial pixels | 480 | |
Spectral bands | 300 | |
Field of View (FOV) | 15.6°@f=35mm | |
Instantaneous Field of View (IFOV | 0.71mrad@f=35mm | |
Frame rate | 50fps/128fps | |
Lens | Focus Mode | Manual Focus |
Focal Length | 35mm | |
FOV | Vertical FOV | 15.6°f=35mm（±20° Adjustable） |
Scanning Range | Horizontal Scanning Range | 360° |
Vertical Scanning Range | ±20° | |
Power Supply | 12V DC |
